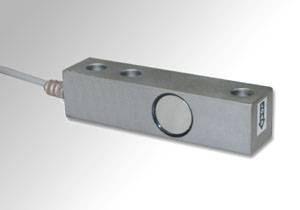

SBS SERIES SHEAR BEAM STAINLESS STEEL LOAD CELLS SBS SERIES SHEAR BEAM STAINLESS STEEL LOAD CELLS Applications Shear beam stainless steel load cells suitable for building, for example, scales with 4 load cells or for weighing tanks and hoppers with the relevant accessories. C3 PRECISION CLASS;STAINLESS STEEL CONSTRUCTION;IP67 PROTECTION LEVEL;MAX. CAPACITIES FROM 250 TO 5000 kg SHIELDED CONNECTION CABLE
|
| Standard Features - Full Scale Output: 3mV/V +/- 0,1%
- Combined error: 0,03% of Full Scale Output (F.S.).
- Non-Repeatability: 0,03% F.S.
- Temperature effect on zero: 0,005% /XC
- Temperature effect on full scale output: 0,003% /XC
- Compensated Temperature Range: -10XC/+40XC
- Operating Temperature Range: -20XC/+70XC
- Creep error after 30 minutes: 0,03% F.S.
- Maximum tolerated excitation voltage: 15 VDC
- Input Resistance: 350 10 Ohm
- Output Resistance: 350 2 Ohm
- Zero balance: +/-1% F.S.
- Insulation Resistance: >2000 MOhm
- Safe Overload: 150% F.S.
- Ultimate Overload: >300% F.S.
- Nominal displacement: < 0,4 mm
- 4-wire shielded cable, 3m long, 5 mm diameter
|  | Models - SBS250: 250kg
- SBS500: 500kg
- SBS1000: 1000kg
- SBS2000: 2000kg
- SBS3000: 3000kg
- SBS5000: 5000kg
|  Options/Accessories

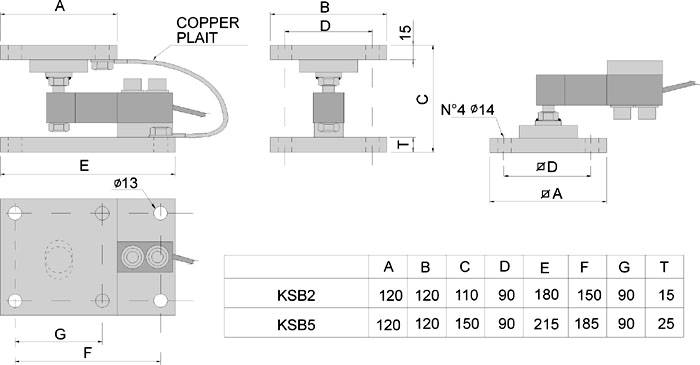

- KSB2:Assembly kit in stainless steel for SBS or SBK shear beam load cells from 250 kg to 2000 kg
- KSB2H:Kit made up of aisi 304 stainless steel jointed upper plate from 250 kg to 2000 kg
- KSB5:Assembly kit in stainless steel for SBS or SBSC load cells from 2500 kg up to 5000 kg
- KSB5H:Kit made up of aisi 304 stainless steel jointed upper plate from 2500 kg to 5000 kg
- KDSB25R:Elastic steel / rubber joint applicable on upper plate (up to 20 t )
