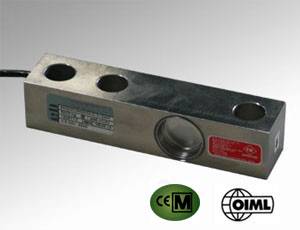

SBSC SERIES IP67 STAINLESS STEEL SHEAR BEAM LOAD CELLS SBSC SERIES IP67 STAINLESS STEEL SHEAR BEAM LOAD CELLS
Applications
Stainless steel shear beam load cells suitable for building, for example, CE-M approved scales with 4 load cells or for weighing tanks and hoppers with the relevant accessories. C3 PRECISION CLASS; OIML CERTIFICATE AVAILABLE UPON REQUEST;STAINLESS STEEL CONSTRUCTION; IP67 PROTECTION LEVEL; MAX. CAPACITIES FROM 3000 TO 5000 kg SHIELDED CONNECTION CABLE
 | Standard Features - Minimum load cell verification interval: Vmin = EMax / 8.000
- Maximum number of verification intervals: nLC = 3000
- Combined error: 0,03% of Full Scale Output (F.S.)
- Full Scale Output: 2mV/V +/- 0.25%
- Non-Repeatability: 0,01% F.S.
- Temperature effect on zero: 0,0015% /XC
- Temperature effect on full scale output: 0,0008% /XC
- Compensated Temperature Range: -10XC/+40XC
- Operating Temperature Range: -18XC/+65XC
- Creep error after 20 minutes: 0,03% F.S.
- Maximum tolerated excitation voltage: 15 VDC
- Input Resistance: 350 7 Ohm
- Output Resistance: 353 3 Ohm
- Insulation Resistance: >1000 MOhm
- Safe Overload: 150% F.S.
- Ultimate Overload: >300% F.S.
- 4-wire screened cable, 5m long, 5 mm diameter
|  | Models - SBSC3000 :3000 kg
- SBSC5000 :5000 kg

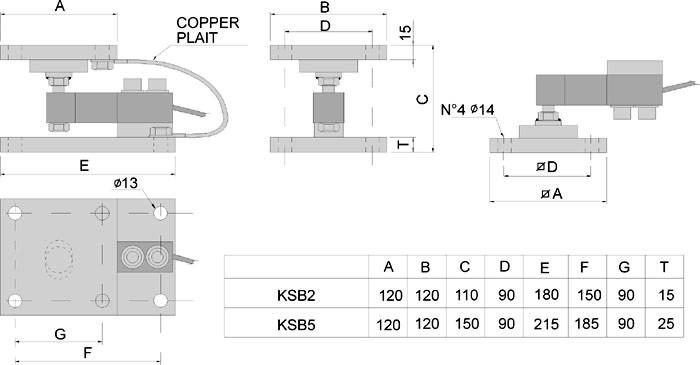

Options/Accessories | |
| |
