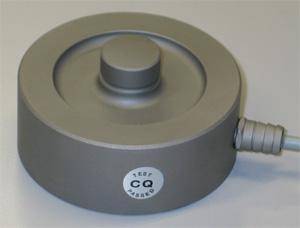

CP SERIES LOW PROFILE LOAD CELLS

CP SERIES LOW PROFILE LOAD CELLS
 Applications
Stainless steel compression load cells suitable for weighing tanks and hoppers with the relevant accessories.

C2 PRECISION CLASS; LOW PROFILE;STAINLESS STEEL CONSTRUCTION;IP68 PROTECTION LEVEL;MAX. CAPACITIES FROM 2500 TO 30000 kg SHIELDED CONNECTION CABLE


Standard Features
  • Combined error 0,05% of Full Scale Output (F.S.)
  • Full Scale Output: 2mV/V +/- 0,1%
  • Non-Repeatability: 0,04% F.S.
  • Temperature effect on zero: 0,005% /XC
  • Temperature effect on full scale output: 0,005% /XC
  • Compensated Temperature Range: -10XC/+40XC
  • Operating Temperature Range: -20XC/+70XC
  • Creep error after 30 minutes: 0,05% F.S.
  • Maximum tolerated excitation voltage: 15 VDC
  • Input Resistance: 700 10 Ohm
  • Output Resistance: 700 3 Ohm
  • Zero Balance: +/-1% F.S.
  • Insulation Resistance: >2000 MOhm
  • Safe Overload: 150% F.S.
  • Ultimate Overload: >300% F.S.
  • Nominal displacement: < 0,5mm
  • 4-wire shielded cable, 5m long (CP15000 and CP30000 - 10m), 5 mm diameter

Models

  • CP2500:2500 kg
  • CP5000:5000 kg
  • CP7500:7500 kg
  • CP10000: 10000 kg
  • CP15000: 15000 kg
  • CP30000: 30.000 kg


Options/Accessories

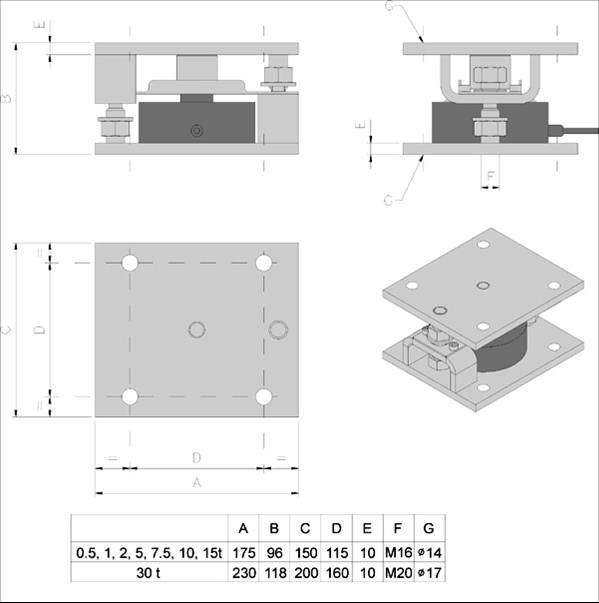

  • Assembly kit
    - KCPN10:Stainless steel assembly kit made up of overturn-proof screw jacks for CP cells from 1000 kg to 10000 kg
    - KCPN15:Stainless steel assembly kit made up of overturn-proof screw jacks for CP cell of 15000 kg
    - KCPN30:Stainless steel assembly kit made up of overturn-proof screw jacks for CP cell of 30000 kg
