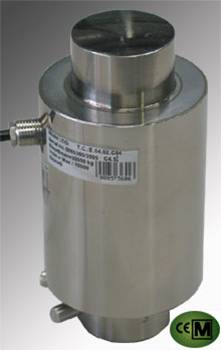

RCK SERIES COLUMN LOAD CELLS RCK SERIES COLUMN LOAD CELLS
Applications
Compression load cells for CE-M approved weighbridges, tanks, silos, etc. Entirely made in stainless steel.
C3 AND C4 PRECISION CLASSES;17-4 PH LASER WELDED STAINLESS STEEL CONSTRUCTION ;INTERNAL FILLING IN SILICON GEL AGAINST CONDENSATION, SUDDEN TEMPERATURE CHANGES, AND CORROSION;RESTORABLE INTERNAL SURGE ARRESTORS FOR PROTECTION FROM ELECTRIC DISCHARGES AND LIGHTNING;OPTIMIZED FOR PARALLEL CONNECTION; IP68 PROTECTION LEVEL;MAX. CAPACITIES FROM 16000 TO 80000 kg SHIELDED CONNECTION CABLE IN TEFLON  | Standard Features - Minimum load cell verification interval: Vmin=EMax/10000
- Maximum number of verification intervals: nLC=3000 (C3) and 4500 (C4)
- Full Scale Output: 2mV/V +/- 0,1%
- Temperature effect on zero: +/- 0,00097% /XC
- Temperature effect on full scale output: 0,00116%/XC
- Compensated Temperature Range: V10XC/+40XC
- Operating Temperature Range: V30XC/+85XC
- Creep error after 4 hours: 0,02% F.S.
- Excitation voltage from 5 to 15 VDC
- Input Resistance: 700 7 Ohm
- Output Resistance: 700 7 Ohm
- Zero Balance: +/-1% F.S.
- Insulation Resistance: > 5000 MOhm
- Safe Overload: 150% F.S.
- Ultimate Overload: >300% F.S.
- 4-wire shielded cable, 15m long, 5 mm diameter
|  | Models - RCK16C3: 16000 kg
- RCK20C3: 20000 kg
- RCK30C3: 30000 kg
- RCK50C3: 50000 kg
- RCK60C3: 60000 kg
- RCK80C3: 80000 kg
- RCK20C4: 20000 kg
- RCK30C4: 30000 kg
Options/Accessories - Assembly kit

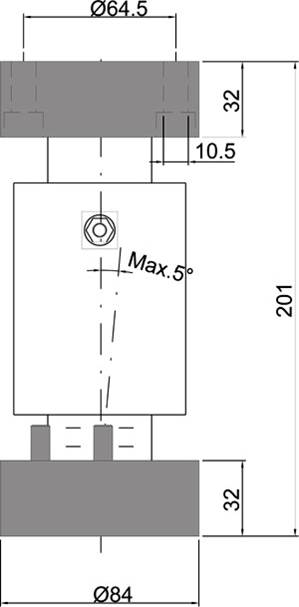

- KRCK:Kit of jointed plates for selfalignment |
|
